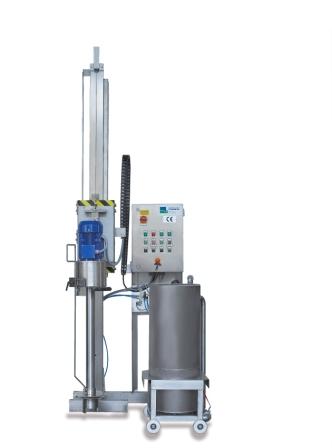

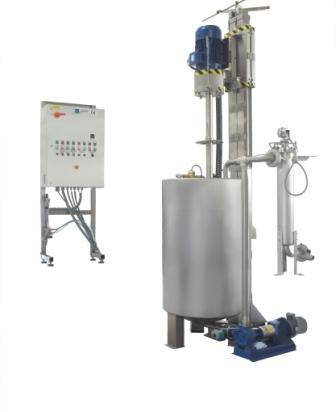

Emulsifiers at propeller STAR - BIG capacity

Description:

The dyestuff emulsifiers are made of AISI 316 stainless steel. Helicocentrifugal impeller with baffles stator, with two direction of rotation. Shaft with  mechanical tightness two-direction. Deflection disk adjustable in  high.

Inverter, speed regulation, 500 : 2800 g/i.

The principle of work of our mixer is based on the continuos ascent vertical mixing, i.e. the product starting from the propeller, goes through the stator with a “cutting effect” with the elimination of the clots, goes up to the deflector disk which conveys the product to the lateral wall of the container.

Guide column for the emulsifier unit made in stainless steel AISI 304.Pneumatic- and turning lifting (manual 180°) of the emulsifier unit.



Caratteristiche

  50 100 200 300 500 1000
capacità/capacity lt 50 100 200 300 500 1000
potenza/power Kw 0,75 1,5 3 5,5 15 20
velocità/speed giri/min 2800 2800 2800 2800 2800 2800
